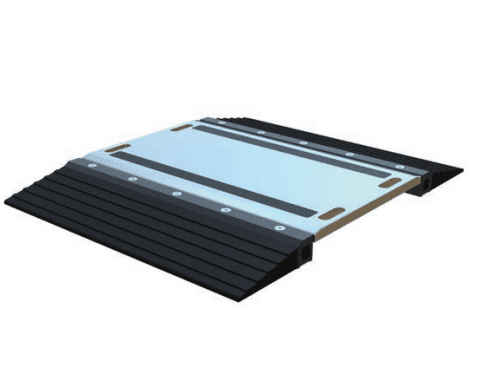

S Series Portable Axle Scale
The S Series offers an ultra-high precision weighing solution, leveraging advanced shear beam sensors and a high-strength aluminum alloy structure to ensure precise and reliable measurements every time. Its exceptional lateral force resistance and wide temperature adaptability enable outstanding performance in various industrial environments, delivering a truly stable and convenient weighing experience.
Features and Functions
Advanced Shear Beam Weighing Sensors:
Independently developed and designed, the S Series achieves remarkable lateral force resistance and ultra-high precision measurement capabilities.
Ultra-High Precision:
Depending on different sizes and specifications, static accuracy can reach 0.02%, while dynamic weighing with a transition plate achieves an accuracy of 0.1%, ensuring that every measurement is flawlessly precise.
High-Strength Aluminum Alloy Structure:
Constructed using high-precision, large-tonnage extrusion equipment, the aluminum alloy platform and fixed beams feature a simple, lightweight, and robust design. The use of specialized CNC machining tools from Germany’ s Noble IMC ensures the strength, precision, and
consistency of the weighing platform.
Customized Solutions:
Supports tailored designs for weighing platform structures, quantities, sensor counts, and ranges, allowing for flexible combinations that perfectly meet specific customer requirements in various applications.
Specification
Pad Meterial: Aviation aluminum
Pad Dimensions(L×W×H，mm): 500×400×60, 720×450×60, 900×500×60, Costomized
Ramp Meterial: Rubber
Ramp Dimensions(L×W×H，mm): 500×180×45, 720×180×45, 900×180×45, Costomized
Sensor Model: SBS-3t
Number of Sensors: 4, 8, 10, Costomized
Single pad capacity: 10t, 15t, 20t, Costomized
Allowed axle load: 20t, 30t, 40t, Costomized
Allowed Number of Pads: 32
Safe overload(%F.S.): 125%
Waterproof rating: IP65
Static Accuracy(%F.S.): 0.02%
Dynamice Accuracy(%F.S.): 0.1%
Temperature Range: -30℃～+80℃
Signal processing: Wireless/Wired
