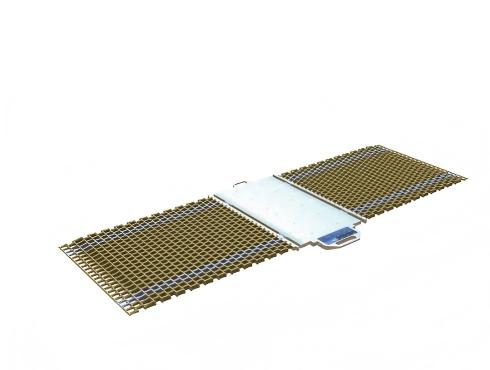

W Series Portable Axle Scale
The W Series axle weighing system adopts a lightweight and ultra-thin design with compact spoke-type sensors, making it easy to operate. Its extended ramp structure is especially suitable for low-chassis or long-wheelbase vehicles, enhancing the smoothness of vehicle entry and exit. With a high-strength steel plate structure, a high protection rating, and excellent environmental adaptability, it delivers efficient and reliable dynamic weighing performance across various industrial settings.
Features and Functions
Extended Ramp Design:
The W Series features a longer approach ramp, providing a more gradual incline hat improves vehicle accessibility and minimizes impact on the weighing platform—ideal for weighing long-wheelbase or low-ground-clearance vehicles.
Ultra-Thin 23mm Platform:
Maintaining the 23mm ultra-thin platform design, the W Series ensures ease of transport, installation, and operation, while allowing for fast and accurate dynamic weighing in mobile or temporary setups.
Durability and Environmental Protection:
Constructed with high-strength steel plates, the W Series provides excellent durability. Coupled with an IP65 or higher protection rating, it withstands dust, water, and harsh industrial environments for long-term stable operation.
Specification
Pad Meterial: Aviation Aluminum + Stainless Steel
Pad Dimensions(L×W×H，mm): 800×440×23, Costomized
Ramp Meterial: ABS Plastic
Ramp Dimensions(L×W×H，mm): 860×600×22, Costomized
Sensor Model: H-3t
Number of Sensors: 18, Costomized
Single pad capacity: 20t, Costomized
Allowed axle load: 40t, Costomized
Allowed Number of Pads: 32
Safe overload(%F.S.): 125%
Waterproof rating: IP65
Static Accuracy(%F.S.): 0.5%
Dynamice Accuracy(%F.S.): 3%~5%
Temperature Range: -30℃～+80℃
Signal processing: Wireless/Wired
