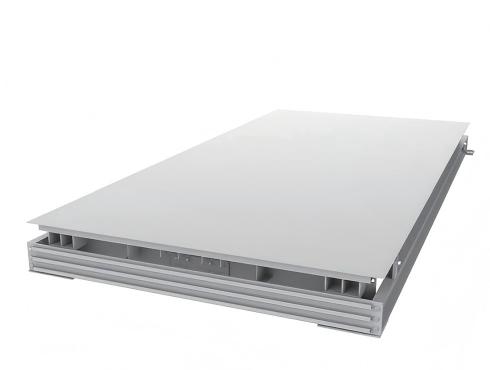

B3 Series Truck Scale
The B3 series includes interchangeable modules of 1.1×3.5m, 1.1×4.5m, or 1.1×5.5m, along with cross beams for flexible configurations. Its narrower weighbridge deck maintains the same weighing capacity while saving materials, and the central gap facilitates easy cleaning underneath the scale.
Features and Functions
Narrower Deck:
Interchangeable modules of 1.1×3.5m, 1.1×4.5m, or 1.1×5.5m, saving materials while maintaining the same weighing capacity.
Easy Cleaning:

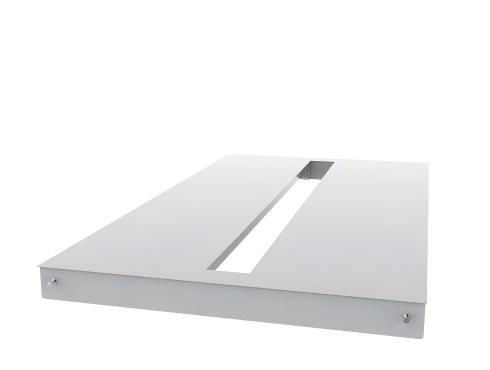

The central gap allows for easy cleaning underneath the scale, promoting hygiene and maintenance.
Customizable Size:
Length and width can be adjusted to fit specific site requirements.
Specification
Product Type: B3 structure truck scale
Material: Carbon Steel
Overall Width: 2m, 2.5m, 3m, 3.2m, 3.4m or Customized
Overall Length: 5m, 6m, 7m, 8m, 9m, 10m, 12m, 14m, 15m, 16m, 18m, 20m, 21m, 22m, 23m, 24m or Customzed
Weighbridge Deck Surface: Chequer, Plain or Dimpled
Max.Capacity Range: 60t, 80t or Customzed
Dvision: 10kg, 20kg, 50kg, 100kg
Safe Overload: 120%FS
Ultimate Overload: 150%FS
Beam Structure: U beams
Accuracy Class: C3, OIML Ⅲ level
Load Cell: Type: Column load cell or Double shear beam load cell (both with OIML certificate) Or Customer-Specified
Output: Analogue or Digital
Load Cell Access: Top or Side acccess
Power Supply: 220V 60HZ or 110V 60HZ(AC and DC)
Mounting Options: Pitless
Optional Features: Galvanization, Rail, Ramps, Large Screen Display, Printer, Lightning Protection Device, Weighing Management Software, Signal Light, etc.
