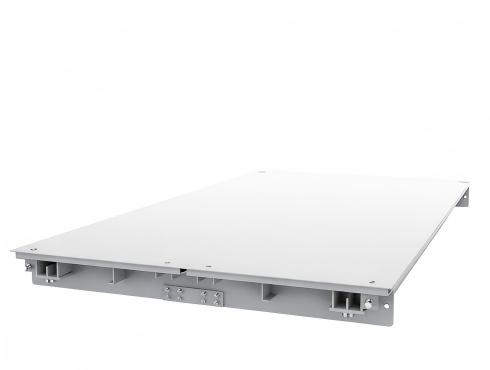

A1 Series Truck Scale
The A1 series features a middle dissected design with bolt connections, allowing easy maintenance through detachable end plates. This configuration ensures accessibility while maintaining structural integrity, making it ideal for environments where regular upkeep is necessary.
Features and Functions
Middle Dissected Design:
Allows for easy maintenance with detachable end plates, providing top access for straightforward servicing.
Durability:
The robust construction ensures long-lasting performance, even in harsh environments.
Customization:
Length and width can be tailored to meet specific site requirements, enhancing operational flexibility.
Specification
Product Type: A1 structure truck scale
Material: Carbon Steel
Overall Width: 2m,2.5m,3m,3.2m, 3.4m or Customized
Overall Length: 5m,6m,7m,8m,9m,10m,12m,14m,15m,16m,18m,20m,21m,22m,23m,24m or Customzed
Weighbridge Deck Surface: Chequer, Plain or Dimpled
Max.Capacity Range:
30t, 40t, 60t, 80t, 100, 120t or Customzed
Dvision: 10kg,20kg,50kg,100kg
Safe Overload: 120%FS
Ultimate Overload: 150%FS
Beam Structure: U beams
Accuracy Class: C3,OIML Ⅲ level
Load Cell: Type： Column load cell or Double shear beam load cell (both with OIML certificate) Or Customer-Specified. Output: Analogue or Digital
Load Cell Access: Top or Side acccess
Power Supply: 220V 60HZ or 110V 60HZ(AC and DC)
Mounting Options: Pit or Pitless
Optional Features: Galvanization, Rail, Ramps, Large Screen Display, Printer, Lightning Protection Device, Weighing Management Software, Signal Light, etc.
