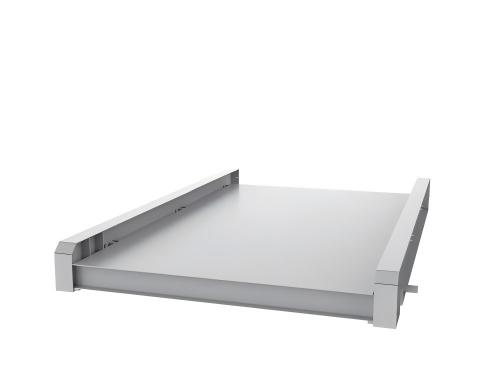

B1 Series Truck Scale
The B1 series offers interchangeable modules of 3×1m or 3×2m, paired with 4m or 6m longitudinal beams to form an H-frame. This modular design allows for flexible customization, enabling customers to meet specific size requirements effortlessly.
Features and Functions
Interchangeable Modules: Offers modules of 3×1m or 3×2m combined with 4m or 6m longitudinal beams, allowing for quick adjustments and expansions.
Robust Performance:
Designed to handle heavy loads reliably, ensuring safety and efficiency.
Customizable Size:
Length and width can be adjusted to fit specific site configurations.
Specification
Product Type: B1 structure truck scale
Material: Carbon Steel
Overall Width: 2m,2.5m,3m,3.2m, 3.4m or Customized
Overall Length: 5m, 6m, 7m, 8m, 9m, 10m, 12m, 14m, 15m, 16m, 18m, 20m, 21m, 22m, 23m, 24m or Customzed
Weighbridge Deck Surface: Chequer, Plain or Dimpled
Max.Capacity Range: 60t, 80t or Customzed
Dvision: 10kg, 20kg, 50kg, 100kg
Safe Overload: 120%FS
Ultimate Overload: 150%FS
Beam Structure: U beams
Accuracy Class: C3, OIML Ⅲ level
Load Cell: Type: Column load cell or Double shear beam load cell (both with OIML certificate) Or Customer-Specified
Output: Analogue or Digital
Load Cell Access: Side access
Power Supply: 220V 60HZ or 110V 60HZ(AC and DC)
Optional Features: Galvanization, Rail, Ramps, Large Screen Display, Printer, Lightning Protection Device, Weighing Management Software, Signal Light, etc.
