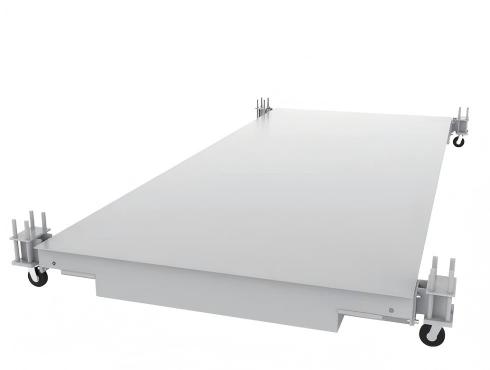

MW Series Truck Scale
The MW series is a mobile weighbridge equipped with an adjustable frame and two reversible ramps for versatile positioning. With four movable wheels, this series offers easy transportation, making it perfect for dynamic environments where flexibility is essential.
Features and Functions
Adjustable Frame:
Equipped with an adjustable frame and two reversible ramps for versatile positioning, making it suitable for dynamic environments.
Easy Transportation:
Four movable wheels facilitate quick relocation.
Customizable Dimensions:
Length and width can be tailored to meet specific operational needs.
Specification
Product Type: MW structure truck scale
Material: Carbon Steel
Overall Width: 2m, 2.5m, 3m, 3.2m, 3.4m or Customized
Overall Length: 5m, 6m, 7m, 8m, 9m
Weighbridge Deck Surface: Chequer, Plain or Dimpled
Max.Capacity Range: 60t
Dvision: 10kg, 20kg, 50kg, 100kg
Safe Overload: 120%FS
Ultimate Overload: 150%FS
Beam Structure: U beams
Accuracy Class: C3, OIML Ⅲ level
Load Cell: Type: Column load cell or Double shear beam load cell (both with OIML certificate) Or Customer-Specified
Output: Analogue or Digital
Load Cell Access: Top or Side acccess
Power Supply: 220V 60HZ or 110V 60HZ(AC and DC)
Mounting Options: Pitless
Optional Features: Galvanization, Rail, Ramps, Large Screen Display, Printer, Lightning Protection Device, Weighing Management Software, Signal Light, etc.
