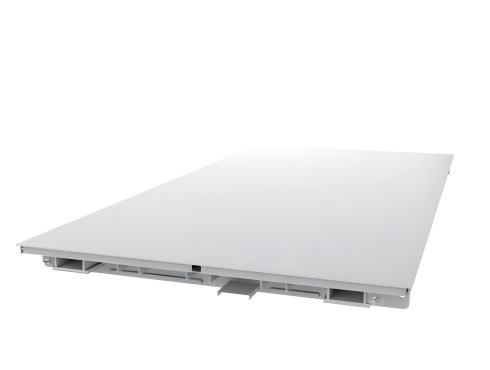

SU Strip Series Truck Scale
Utilizing high-strength alloy steel modular deck plates, this system offers configurable single-section lengths of 1.5-3m with total span up to 6m. Capacity ranges from 30t, achieving ±5kg static accuracy and ±0.1%FS dynamic precision.
Features and Functions
Detachable end plates:
Enables flexible installation and reduces site preparation requirements
High-strength U-beam design:
120% safe overload capacity with 30-ton max capacity
Durable construction:
OIML Class C3 accuracy with optional galvanization for harsh conditions
Specification
Product Type: SU Strip Series Truck Scale
Material: Carbon Steel
Overall Width: 1~3m or Customized
Overall Length: 1.5~6m or Customzed
Weighbridge Deck Surface: Chequer, Plain or Dimpled
Max.Capacity Range: 30t
Dvision: 5kg, 10kg
Safe Overload: 120%FS
Ultimate Overload: 150%FS
Beam Structure: U beams
Accuracy Class: C3, OIML Ⅲ level
Load Cell: Type: Column load cell or Double shear beam load cell (both with OIML certificate) Or Customer-Specified
Output: Analogue or Digital
Load Cell Access: Top or Side acccess
Power Supply: 220V 60HZ or 110V 60HZ(AC and DC)
Mounting Options: Pit or Pitless
Optional Features: Galvanization, Rail, Ramps, Large Screen Display, Printer, Lightning Protection Device, Weighing Management Software, Signal Light, etc.
