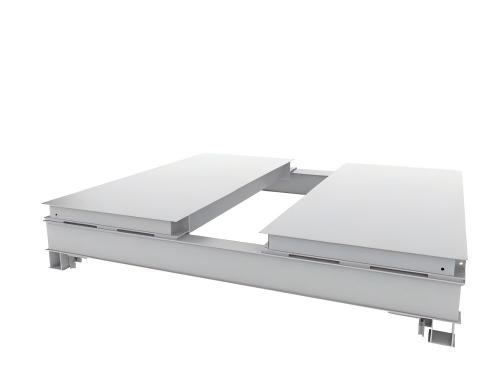

HD Series Truck Scale
The HeavyDuty series is specifically designed for heavy vehicles and can withstand weights of up to 200 tons. Its robust and rigid structure is ideal for weighing dump trucks, ensuring an efficient and safe weighing experience.
Features and Functions
Tailored Design:
Customizable to meet specific customer requirements, suitable for the heaviest vehicles with a load capacity of up to 200t.
Exceptional Load-Bearing Capacity:
Features cross beams positioned beneath the weighing platform, with all panels thickened and reinforced for excellent performance under heavy loads.
Robust Construction:
Designed for durability and reliability in demanding environments, ensuring that the weighbridge meets unique operational demands.
Specification
Product Type: MW structure truck scale
Material: Carbon Steel
Overall Width: 2m, 2.5m, 3m, 3.2m, 3.4m or Customized
Overall Length: 5m, 6m, 7m, 8m, 9m, 10m, 12m, 14m, 15m, 16m, 18m, 20m, 21m, 22m, 23m, 24m or Customzed
Weighbridge Deck Surface: Chequer, Plain or Dimpled
Max.Capacity Range: 200t
Dvision: 10kg, 20kg, 50kg, 100kg
Safe Overload: 120%FS
Ultimate Overload: 150%FS
Beam Structure: U beams
Accuracy Class: C3, OIML Ⅲ level
Load Cell: Type: Column load cell or Double shear beam load cell (both with OIML certificate) Or Customer-Specified
Output: Analogue or Digital
Load Cell Access: Top or Side acccess
Power Supply: 220V 60HZ or 110V 60HZ(AC and DC)
Mounting Options: Pit or Pitless
Optional Features: Galvanization, Rail, Ramps, Large Screen Display, Printer, Lightning Protection Device, Weighing Management Software, Signal Light, etc.
