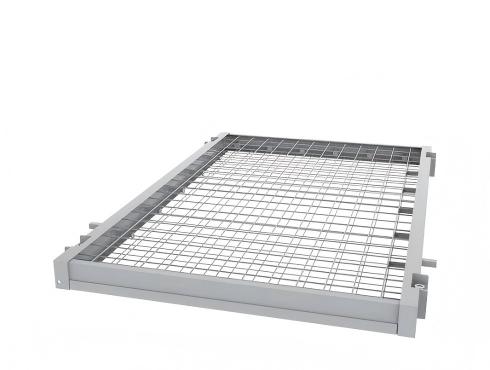

C2 Series Truck Scale
The C2 series utilizes a modular design with a dismountable frame and reinforcement bars that can be welded on-site. This approach allows for convenient container transportation and requires the customer to perform concrete pouring, enhancing logistical efficiency.
Features and Functions
Modular Design:
Dismountable frame and reinforcement bars that can be welded on-site, allowing for convenient container transport.
Site-Specific Adaptability:
Flexibility in installation caters to specific site conditions.
Customizable Dimensions:
Length and width can be tailored to meet operational needs.
Specification
Product Type: C2 structure truck scale
Material: Carboon Steel and Concrete
Overall Width: 3m, 3.2m, 3.4m or Customized
Overall Length: 5m, 6m, 7m, 8m, 9m, 10m, 12m, 14m, 15m, 16m, 18m, 20m, 21m, 22m, 23m, 24m or Customzed
Weighbridge Deck Surface: Not Applicable
Max.Capacity Range: 30t, 40t, 60t, 80t, 100, 120t or Customzed
Dvision: 10kg, 20kg, 50kg, 100kg
Safe Overload: 120%FS
Ultimate Overload: 150%FS
Beam Structure: Not Applicable
Accuracy Class: C3, OIML Ⅲ level
Load Cell: Type： Column load cell or Double shear beam load cell (both with OIML certificate) Or Customer-Specified
Output: Analogue or Digital
Load Cell Access: Top or Side acccess
Power Supply: 220V 60HZ or 110V 60HZ(AC and DC)
Mounting Options: Pit or Pitless
Optional Features: Galvanization, Rail, Ramps, Large Screen Display, Printer, Lightning Protection Device, Weighing Management Software, Signal Light, etc.
